Lead Acid Battery Charger High charging efficiency High Frequency Charger Three Phase 24V 48V 80V 50A 100A For Forklift CZC9SI
1. Features
The CZC9SI series charger uses a high-performance embedded charging control unit to control the charging current. The main circuit is designed with optimized parameters.
Provides continuously adjustable charging current for various batteries to meet various charging process requirements.
The charging controller composed of the embedded system controls the charging process in real time and detects and records the charging process data.
The main circuit with optimized parameters, under the control of the charging controller, the charging current and charging voltage are continuously controllable, so that users can
Use appropriate charging methods to charge various batteries for different purposes to ensure the best charging effect.
The charging controller has multiple default charging curves built in to meet various charging process requirements. At the same time, users can also set and store modified charging curves as needed to meet customized charging process requirements.
The charger controller has a simple and practical human-machine interface. Charging parameters are set on the LCD touch screen and the charging process is displayed.
Various parameters and status of the charging process are displayed, making it convenient for users to understand the charging process in real time.
The charging controller monitors various parameters during the charging process in real time, so that the charger has a complete protection function and ensures the charging process in real time.
The process went smoothly
Main functions of charger:
1. Charging mode: There are multiple charging modes to choose from, suitable for different charging processes.
2. Human-machine interface: 4.3” serial port LCD color touch screen is used to display charging process parameters; various parameters of the charging stage can be set.
3. Charging data record: SD card records the charging process curve, which can be read through PC.
EEPROM records charging data, which can be analyzed.
On the LCD screen, check the charging process event log.
4. Scheduled charging function: You can set the start time of scheduled charging and use valley electricity for charging.
5. Setting parameter power-off protection: The system can memorize the parameters set by the user for a long time and will not lose them even if there is a power outage.
6. Input power phase sequence: There is no phase sequence requirement for the power grid, and the A, B, and C three-phase inputs can be wired arbitrarily.
7. Special charging function: forced start (0V) function, the charger will automatically shut down if the connecting line falls off during charging (battery fall-off detection
test).
8. Protection function: open circuit, reverse connection, overcurrent, overvoltage, overheating, power supply shortage and other fault protection and alarm functions.

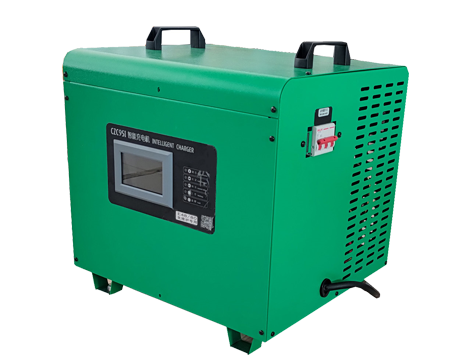

.png)
IntroductionThrough the application of high-performance embedded charging control unit, CZC9SI series charger could control charging current. Main circuit with parameter-optimized design could provide continuously adjustable charging current, thus meeting various charging process requirements.
Charging controller which is composed by embedded system could control charging process, monitor and record charging data in real time.
With the application of charging controller and main circuit, this charger could charge various batteries through appropriate charging methods, thus achieving best charging effect.
Charging controller which is equipped with multiple charging curves could meet various different charging process requirements. In the meantime, Users could set and save charging curve which has been changed, satisfying customized charging requirements.
This charging controller is equipped with simple & practical man-machine interface. Users could set charging parameters in LCD touch screen. This screen would display charging parameters and charging status, making it easy for users to know charging process in real time.
The charging controller monitors various parameters in the charging process in real time, so that the charger has perfect protection function and ensures the smooth charging process in real time.
| Model | Input power |
Limiting conditions | Rated input power kVA |
Input current A |
Max output current A |
Max outpu t voltag e V |
Net weig ht Kg |
Com muni catio n |
Ingress protecti on |
Dimension |
| E24/100 | 1P 220V | Single phase three wire system(P+N+PE) |
3.1 | 14.1 | 100 | 32 | 36 | CAN | IP21 | 450×300×300 |
| D24/100 | 3P 220V | Three phase four wire System(3P+PE) |
3.1 | 8.1 | 581×420×480 |
|||||
| 3P 380V | Power must be three phase five wire system (3P+N+PE), need null line “N” |
3.1 | 14.1 | 581×420×480 | ||||||
| 3P 400V | 3.1 | 13.4 | 581×420×480 | |||||||
| 3P 415V | 3.1 | 12.9 | 581×420×480 | |||||||
| 3P 440V | 3.1 | 12.2 | 581×420×480 | |||||||
| E48/50 | 1P 220V | Single phase three wire system(P+N+PE) |
3.1 | 14.1 | 50 | 64 | 450×300×300 |
|||
| D48/50 | 3P 220V | Three phase four wire system(3P+PE) |
3.1 | 8.1 | 581×420×480 |
|||||
| 3P 380V | Power must be three phase five wire system (3P+N+PE), need null line “N” |
3.1 | 14.1 | 581×420×480 | ||||||
| 3P 400V | 3.1 | 13.4 | 581×420×480 | |||||||
| 3P 415V | 3.1 | 12.9 | 581×420×480 | |||||||
| 3P 440V | 3.1 | 12.2 | 581×420×480 | |||||||
| D80/100 | 3P 220V | Three phase four wire system(3P+PE) |
10.3 | 27.1 | 100 | 106 | 38 | 731×459×476 | ||
| 3P 380V | 10.3 | 15.7 | ||||||||
| 3P 400V | 10.3 | 14.9 | ||||||||
| 3P 415V | 10.3 | 14.4 | ||||||||
| 3P 440V | 10.3 | 13.5 |
